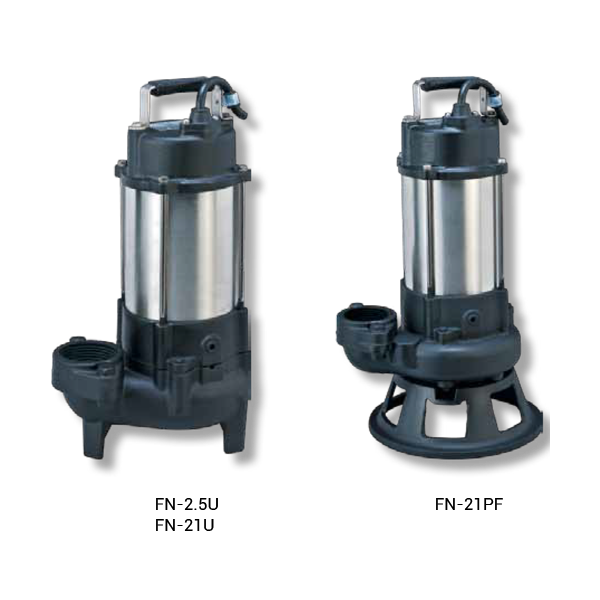

FN Series

FN Series

FN Series

$0.00

The FN Series is engineered for reliable wastewater handling in residential, commercial, and industrial applications. Built with rugged cast iron construction, non-clog impellers, and IP68-rated motors, these pumps deliver strong performance with solid passage capacity up to 50 mm. Designed for durability and efficiency, the FN Series ensures dependable drainage and sewage transfer with minimal maintenance.

SKU: N/A Categories: ,

Description

  • The FN Series Submersible Sewage Effluent Pumps are designed to handle and meet the needs of a wide range of wastewater applications.
  • The FN-UL non-clogging models are made to handle larger solids.
  • Optional casing: The FN-32/33U and FN-32/33P models have vertical casing available, and the FN-21P has a horizontal casing available.
  • The FN-32U/33U models can handle a maximum of 50mm solid passage, and the FN-32P/33P models can handle a maximum of 35mm solid passage.

Features:

  • Epoxy Cable Base – An epoxy resin seal cable base prevents moisture from entering the motor through the core wires.
  • Auto-cut Protector – Automatic On / Off motor protector to prevent motor burn out due to high temperature and excess amperage draw.
  • High Efficiency Dry Motors – All stator coils are treated with insulating varnish procedures to achieve the best insulation, efficiency and durability.
  • Double Mechanical Seals – Superior abrasion resistant mechanical seal is manufactured with silicon carbide to ensure the best seal effect.

Accessories:

FN pumps can be installed with 90° Elbow Flange outlet or GRS guide rail system, to have easier/safer installation or removal during replacement and maintenance. The GRS does not support the vertical casing models.

  • Building, hotel, and industrial factory sewage drainage
  • Drainage of flooded basement, garage, and factory wastewater
  • Emptying of septic tanks, cesspits, and sewage pump stations
  • Pumping for sprinkler systems
  • Surface water dewatering

Download FN Series Brochure & Spec Sheet
